Double Girder EOT Crane

Double Girder EOT Crane

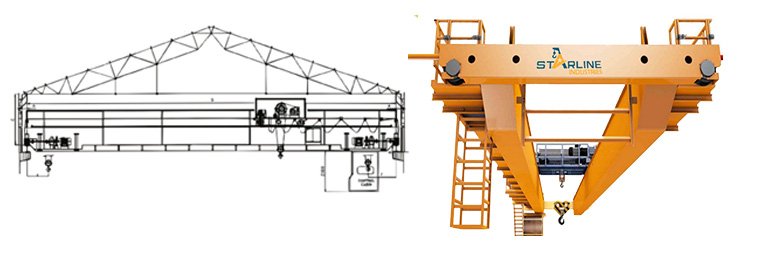

double-girder-eot-crane

We are known as the renowned manufacturer, Exporter and supplier of highly efficient Double Girder EOT Crane that are used in various industries for material handling purpose. These are fabricated using high quality components and sophisticated technology as per the set industries standards. The offered Double girder EOT Cranes are available in various technical specifications as per diverse need of the clients.

Advantages:
  • Ideal for production and transportation of heavy equipment & frequent lifting of heavy loads.
  • Best for indoor and outdoor applications, including mining, iron & steel, railyards, and ports.
  • No limits to maximum span or capacity.
  • Greater hook height how far above the floor the hoist will lift (typically 18-36 more than single girder).

Technical Specifications:

SWT
(M.T.)		 Span (Mtrs.)
's'		 Head Room
(mm) - 'C'		 End Clearance
(mm) - 'A'		 Hook Approches Wheel Base
(mm) - 'W'		 Total Width in Ton
(Approx)		 Wheel Load
(Approx.)(Mt)
(mm)-'E' (mm)-'F'
5 10 1700 260 950 850 3600 10 6.2
15 1700 260 950 850 3800 11 6.8
20 1800 260 950 850 4000 14 8.0
7.5 10 1800 260 1000 900 3600 12 8.5
15 1800 260 1000 900 3800 15 9.5
20 1900 260 1000 900 4000 17 10.0
10 10 1900 260 1100 1000 3600 14 10.0
15 1900 260 1100 1000 3800 15 11.0
20 2100 280 1100 1000 4000 20 12.0
15 15 2400 280 1100 1000 3800 22 16.0
20 2600 280 1100 1000 4200 25 17.0
20 15 2500 320 1200 1000 4000 24 19.0
20 2700 320 1200 1000 4200 28 20.0
25 15 2700 320 1250 1100 4200 25 22.0
20 3000 320 1250 1100 4400 30 23.0
30 15 2800 320 1300 1100 4400 30 26.0
20 3000 320 1300 1100 4600 36 28.0
40 15 3200 330 1400 1200 4600 35 32.0
20 3500 330 1400 1200 4800 40 34.0
50 15 4000 360 1500 1250 4800 42 37.0
20 4500 360 1500 1250 5000 48 39.0
60 15 4200 425 1700 1350 5800 62 50.0
20 4700 425 1700 1350 6000 72 52.0
